Overview

Basic Info.

Model NO.	PR-1K-CT100
Performance	High-Strength Type
State	Carbon Fiber Fabric
Mechanical Property	High-Performance Type
Weave	Plain Twill Football Camouflage OEM
Transport Package	Carton Package
Specification	Customized
Trademark	Customized
Origin	China
HS Code	681512
Production Capacity	300, 000 Square Meter Per Month

Packaging & Delivery

Package Size110.00cm * 26.00cm * 26.00cm Package Gross Weight24.000kg

Product Description

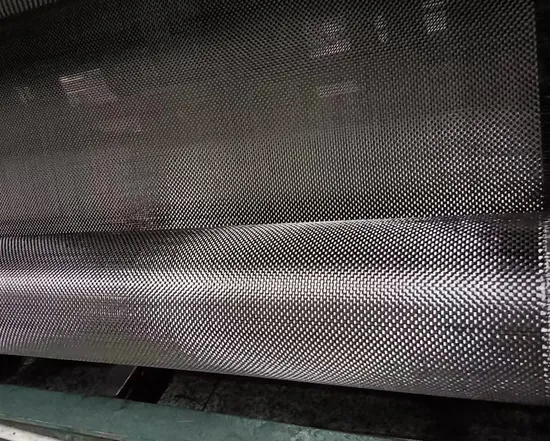

Carbon fiber fabricCarbon fibre fabric is manufactured using carbon fibre, with the weaving technique employed being either unidirectional plain weaving or twill weaving. The carbon fibres utilised in this study have been shown to possess superior strength-to-weight and stiffness-to-weight ratios. In addition, the carbon fabrics exhibit both thermal and electrical conductivity, while demonstrating remarkable fatigue resistance.When engineered correctly, carbon fabric composites have the potential to achieve the strength and stiffness of metals while exhibiting a significant reduction in weight. Carbon fabrics have been demonstrated to be compatible with a variety of resin systems, including epoxy, polyester and vinyl ester resins.SpecificationFeature:1. High fineness
2. Excellent mechanical properties
3. Light weight
4. Good corrosion resistance
5. High thermal stability
6. Good processability
7. Moderate conductivityApplication:1.Aerospace2.Construction3.Wind power4.Marine5.Automobile decoration6.Sports equipment7.More

Key: CustomizedCarbon fibre fabric is a material that is renowned for its exceptional strength, stiffness, and lightweight properties. It is a well-documented fact that the fibre is most often blended with other fibres, including glass fibre and aramid fibre, in order to achieve specific performance characteristics. The fabrication of this material involves the utilisation of 1K, 3K, 6K and 12K carbon fibres, depending on the specific strength and weight requirements.

UnidirectionalVarious of new material.Bidirectional: Plain and Twill, Customized.

Difference between diffenent K filaments.
Aspect	1K Carbon Fiber Fabric	3K Carbon Fiber Fabric	6K Carbon Fiber Fabric	12K Carbon Fiber Fabric
Pros	- Finest weave(smooth surface) -Excellent drapability for complex shapes -High strength-to-weight ratio	-Balanced cost and performance -Good flexibility and surface finish -Widely available	-Strong and cost-effective -Good resin penetration -Moderate drapability	-Most affordable - Fast layup for large areas -High stiffness(Strength)
Cons	-Most expensive -Lower production efficiency -Delicate handling required	-Slightly heavier than 1k -Less suited for extreme precision vs. 1k	-Rougher surface than 3k/1k -Less ideal for tight curves vs. finer weaves	-Poor drapability(rigid) -Resin-rich areasmay weaken strength -Coarse surfacetexture
Applications	-High-end aerospace parts -Precision sportsgear (e.g. racing bike forks) -Luxury goods	-Consumer drones -Automotive body panels -Bicycle frames	-Aerospace structural components -Marine parts (e.g. boat hulls) -Racing car chassis	-Wind turbine blades -Automotive bulkheads -Industrial tooling
Distinctions	Smallest filaments, best for ultra-thin, high-detail laminates.	Mid-range versatility; common in hobbyist and mid-performance industries.	Preferred for industrial uses requiring strength and moderate complexity.	Thickest tows; ideal for large, flat, orlow-curvaturestructures.

When to Use Which?-1k: Critical high-performance parts needing precision and minimal weight (e.g., F1 components).-3k: General-purpose performance with a balance of cost and quality (e.g., consumer drones).-6k: Industrial applications requiring strength and moderate complexity (e.g. boat hulls).-12k: Budget-friendly projects with large, simple geometries (e.g., wind turbine blades).Choose based on cost,complexity,and performance requirements!Technical Specifications(Custom configurations available upon request.)

Bidirectional Carbon Fiber Fabric
Item No.	Reinforcement Yarn		Weave Pattern	Tow Count/10MM		Weight	Thickness	Width
	Warp Yarn	Welf Yarn		Warp Yarn	Welf Yarn	g/m2	(mm)	(mm)
PR-1K-CP80	1k	1k	Plain	6	6	80	0.08	100-1500mm
PR-1K-CP100	1k	1k	Plain	7.5	7.5	100	0.10	100-1500mm
PR-1K-CP120	1k	1k	Plain	9	9	120	0.12	100-1500mm
PR-1K-CT120	1k	1k	Twill	9	9	120	0.12	100-1500mm
PR-1K-CP140	1k	1k	Plain	10.5	10.5	140	0.14	100-1500mm
PR-1K-CT140	1k	1k	Twill	10.5	10.5	140	0.14	100-1500mm
PR-3K-CP160	3k	3k	Plain	4	4	160	0.16	100-1500mm
PR-3K-CT160	3k	3k	Twill	4	4	160	0.16	100-1500mm
PR-3K-CP200	3k	3k	Plain	5	5	200	0.20	100-1500mm
PR-3K-CT200	3k	3k	Twill	5	5	200	0.20	100-1500mm
PR-3K-CP240	3k	3k	Plain	6	6	240	0.24	100-1500mm
PR-3K-CT240	3k	3k	Twill	6	6	240	0.24	100-1500mm
PR-3K-CP280	3k	3k	Plain	7	7	280	0.28	100-1500mm
PR-3K-CT280	3k	3k	Twill	7	7	280	0.28	100-1500mm
PR-6K-CP320	6k	6k	Plain	4	4	320	0.32	100-1500mm
PR-6K-CT320	6k	6k	Twill	4	4	320	0.32	100-1500mm
PR-6K-CP400	6k	6k	Plain	5	5	400	0.40	100-1500mm

PR-6K-CT400	6k	6k	Twill	5	5	400	0.40	100-1500mm
PR-12K-CP400	12k	12k	Plain	2.5	2.5	400	0.40	100-1500mm
PR-12K-CT400	12k	12k	Twill	2.5	2.5	400	0.40	100-1500mm
PR-12K-CP480	12k	12k	Plain	3	3	480	0.48	100-1500mm
PR-12K-CT480	12k	12k	Twill	3	3	480	0.48	100-1500mm
PR-12K-CP560	12k	12k	Plain	3.5	3.5	560	0.56	100-1500mm
PR-12K-CT560	12k	12k	Twill	3.5	3.5	560	0.56	100-1500mm
PR-12K-CP640	12k	12k	Plain	4	4	640	0.64	100-1500mm
PR-12K-CT640	12k	12k	Twill	4	4	640	0.64	100-1500mm
PR-12K-CP800	12k	12k	Plain	5	5	800	0.80	100-1500mm
PR-12K-CT800	12k	12k	Twill	5	5	800	0.80	100-1500mm

Company Profile

Why Choose Us?Other ProductsOEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Efficient communication and professional supportQuick shippingStrong production ability......Carbon fiber clothCarbon fiber tubeCarbon fiber rodCarbon fiber sheetCarbon fiber Mesh......Aramid/kevlar fabric

FAQQ: Are you a factory or a trading company?A: We are a professional factory that makes carbon fibre products.Q: Can you send me a free sample?A: Yes, we can give you a free sample, but you will need to pay for the postage. Or provide your DHL, FedEx or UPS account.Q: How do you make sure your products are good?A: We have the most professional technology team and experienced workers. We strictly control every step of the process, from choosing the materials to producing the products and packaging them. This ensures that you get the right products.Q: How can I pay?A: Negotiable, we can accept most of the payment method. Please contact and let talk more details.
